Introduction

Licorice (Glycyrrhiza glabra L., Fabaceae) is a plant species native to Eastern Europe and Southwest Asia, including Iran. The roots of the plant are valuable sources of useful secondary metabolites such as glycyrrhizin and phenolic compounds used in the pharmaceutical and food industries. The triterpenoid saponin of glycyrrhizin is the major active constituent of licorice root and is 30-50 times sweeter than sucrose. Glycyrrhizin and its derivatives possess anti-inflammatory and antioxidant activities and are involved in plant defense responses (Yin et al. 2017).

Various environmental conditions such as climatic changes, seasonal variations, light, temperature, humidity, and soil conditions can affect the content of plant secondary metabolites including saponins. The plants exhibit several mechanisms to protect cells against environmental stresses and attempt to withstand changes in metabolism by reducing the damage caused by stresses (Yordanov et al. 2003). Stress factors rarely induce only isolated effects and there are usually concurrent effects. Cold stress is one of the limiting factors of survival and growth and plays an important role in ecological distribution of organisms. All organisms have developed various mechanisms for adaptation against the cold. Cold adaptability involves reprogramming gene expression in a variety of metabolic pathways such as biosynthesis of proteins and fats and accumulation of osmolyte compounds such as proline, glycine betaine, and polyamines (Kabiri et al. 2012).

Polyamines are important polycations like putrescine, spermidine and spermine that play important roles in a wide range of physiological processes including growth and development, stimulation of cell division, DNA synthesis and proteins, rooting control and response to environmental stresses such as cold, heat, drought and salinity (Navakoudis et al. 2007). It was demonstrated that exogenous application of 1 mM spermine reduced chilling injury during low temperature storage of grape berries, leading to maintenance of fruit quality and shelf life (Harindra Champa et al. 2015).

Nanoparticles (NPs) in agricultural systems can potentially be used as an appropriate candidate for change in the growth, development, productivity, and quality of plants. They have small particle size and increase contact with materials. Accordingly, plants are most commonly used to determine the effect of nanoparticles (Nair et al. 2010). Titanium dioxide nanoparticles are used in many industries due to their specific physical and chemical properties. Nano-titanium dioxide enhances the ability of plants to absorb sunlight that affects the production and conversion of light energy to active electrons and chemical activities and increases the efficiency of photosynthesis (Akbari et al. 2014). Several reports have shown that titanium dioxide nanoparticles reduce the destructive effects of stresses by increasing the activity of antioxidant enzymes and reducing the free radicals of oxygen and MDA (Zheng et al. 2007). However, effects of TiO2 NPs on plants differ depending on plant species, applied concentration, duration and type of Ti structure. TiO2 NPs in an anatase crystal structure are toxic in all of the tested organisms at high concentrations. In contrast, because of the lipophilicity of TiO2 NPs in the rutile form, they can produce larger aggregates in an aqueous medium, which promotes a reduced effect on biological organisms and a lower toxicity than the anatase form (Clément et al. 2013). In most previous reports, interactions of different forms of TiO2 NPs with several plant species at different concentrations were studied under optimum conditions. TiO2 NPs up to 2 ppm improved growth and photosynthesis efficiency in Lycopersicon esculentum Mill., but had negative effects on growth and fresh weight of the roots (Song et al. 2013). Very few studies have previously been conducted on TiO2 NPs application under various environmental stresses. For example, the effect of TiO2 NPs (as anatase form at 2-500 ppm concentrations) on Cicer arietinum L. genotypes (Fabaceae) was investigated under cold stress conditions. Results from this study revealed that low concentrations of TiO2 NPs (up to 5 ppm) alleviated cold-induced damages in the studied genotypes (Mohammadi et al. 2013). Cold stress conditions induces oxidative processes in plant cells by production of reactive oxygen species (ROS), which interact nonspecifically with many cellular components, triggering peroxidative reactions and causing significant damage to essential macromolecules and especially damaging the membranes as the primary site of cold injury. TiO2 NPs by induction of plant antioxidant systems alleviate accumulation of MDA, which can be considered an evaluation factor of membrane damage (Stampoulis et al. 2009).

In order to increase resistance to stress, modify negative effects of stress, and increase the qualitative properties of growth, application of TiO2 NPs and polyamines may be useful. Thus, in this study the effects of TiO2 NPs and spermine on physiological and biochemical responses of licorice plants were investigated under cold stress conditions.

Materials and methods

Plant material and growth conditions

Seeds of Glycyrrhiza glabra plants were provided from the Pakan-Bazr Seed Production Company (Isfahan, Iran). The seeds were disinfected using NaClO 20% for 10 min and then washed 3 times in sterile distilled water. TiO2NPs were purchased from US Research Nanomaterials (USA) and had an average diameter of 10-25 nm (99% anatase). TiO2NPs were dispersed in filtered double-distilled water in an ultrasonic bath for at least 20 min and then added to the cultures prior to autoclaving at 120 ºC for 15 min. Spermine (Sigma) solution was first sterilized by a 0.2 μm filter and then added to MS (Murashige and Skoog1962) liquid culture medium after autoclaving. The medium pH was adjusted to 5.7-5.8 before autoclaving. Eight seeds were cultured in each jar containing MS basal medium, 3% sucrose and 0.7% agar. The TiO2 nanoparticles were used at 0, 2 and 5 ppm and spermine at 0 and 1 mM concentrations, separately. Cultures without any TiO2 NPs and spermine were considered controls. All cultures were incubated in a growth chamber at 26 ± 2 ºC, with an irradiance of 4000 Lux provided by white light fluorescent lamps, under a 16:8 h light/dark photoperiod for 30 days. The 30-day-old seedlings were divided into two groups of thermal treatment, one group was maintained under control condition (26 ºC) and the other group at 4 ºC as cold treatment for 2 days. Then, the aerial parts of treated seedlings were used for all assays. All experiments were conducted in triplicate.

Analysis of growth parameters

The 30-day-old seedlings were used to measure fresh, dry and turgid weight. Fresh weight was measured using a digital scale. In order to determine the turgid weight, seedlings were washed in distilled water and maintained in the dark for 72 h and then their weight was measured. In order to determine dry weight, seedlings were placed in an oven at 70 ºC for 48 h and then their weight was measured .Relative water content (RWC) was determined according to following formula:

RWC (%) = (FM-DM)/(TM-DM) 100

Where, FW: Fresh weight; DW: Dry weight; TW: Turgid weight.

Analysis of biochemical characteristics

Aerial parts of the treated seedlings were cut and washed in distilled water. Then they were oven-dried at a constant 70 ºC for 24 h and digested on a hot block with concentrated HNO3 for 1 h at 60 ºC. The samples were cooled to room temperature. Bioaccumulation of Ti in the digested samples was evaluated by inductively coupled plasma mass spectrometry (ICP-MS, HP-4500, USA) (Wu et al. 2007).

To measure the glycyrrhizin content 0.4 g of the dried samples was subjected to extraction using 1 mL 80% (v/v) methanol at 60 ºC for 6 h and then centrifuged at 4000 g for 10 min at room temperature. The supernatant was transferred to a new tube and 1 mL 80% methanol was added and centrifuged again. The extract was quantified by high performance liquid chromatography (HPLC) using a reverse-phase column (150×4.6 mm i.d.; 5μm) SB-C8 (Agilent, USA, Zorbax). The mobile phase flow rate was 1 mL min-1 and glycyrrhizin was detected at 254 nm and 25 ºC. The glycyrrhizin content was calculated using a standard chromatogram (Orujei et al. 2013).

Photosynthetic pigments were extracted by grinding 0.5 g of the fresh sample in 0.5 mL acetone (80% V/V). The absorption was recorded at 647, 663 and 470 nm. The pigment content was calculated as mg g-1 FW (Lichtenthaler and Wellburn 1983).

Lipid peroxidation was determined by measuring MDA content, following the method described by Heath and Packer (1968) with slight modifications. The amount of MDA was calculated by using an extinction coefficient of 155 mM-1 cm-1. The generation of H2O2 was measured according to Velikova et al. (2000). The content of H2O2was calculated using the molar extinction coefficient 0.28 mol-1 cm-1 (ɛ530 = 0.28 mol-1 cm-1).

Free proline content was determined according to Bates et al. (1973). Glycine betaine content was determined according to Grieve and Grattan (1983) using a standard curve, and expressed in μmol g-1 DW.

The content of total phenols of the methanolic extracts was evaluated following the method of Plessi et al. (2007). Flavonoid content was measured using the aluminum chloride method and calculated by quercetin standard curve (Chang et al. 2002). Total anthocyanin content was determined as described by Wagner (1979).

To measure the content of soluble sugars (glucose, rhamnose and mannose), 100 mg of the fresh samples was homogenized with 10 mL 95% ethanol, and extracts were centrifuged at 6000 g for 15 min. Then, the upper phase of the centrifuged samples was supplemented with 3 mL anthrone (150 mg anthrone in 100 mL 72% H2SO4) and maintained at 100 ºC for 10 min in boiling water. Then, the absorbance was read at 485 nm (glucose), 480 nm (rhamnose) and 490 nm (mannose) (Irigoyen et al. 1992). The content of soluble sugars was determined using glucose, mannose and rhamnose standard curves and expressed as mg g-1 DW.

To extract protein, 0.5 g of the fresh samples was ground in liquid nitrogen and homogenized in phosphate buffer (50 mM, pH 7.0) containing 1% (w/v) polyvinyl polypyrrolidone at 4 ºC. The homogenate was centrifuged at 13000 g and 4 ºC for 20 min. The supernatant was used for enzyme and protein assays. Total protein content was determined according to Bradford (1976) and expressed in mg g-1 FW.

The activity of superoxide dismutase (SOD) was evaluated by inhibiting the photochemical reduction of 3-nitro blue tetrazolium (NBT) by an enzyme-containing plant extract (Winterbourn et al. 1976). One unit of enzyme activity, the amount of enzyme that inhibits NBT reduction by up to 50%, was considered. Peroxidase (POD) and catalase (CAT) activities were evaluated based on the method of Chance and Maehly (1955). Determination of polyphenol oxidase (PPO) activity was assessed according to Kar and Mishra (1976). Ascorbate peroxidase (APX) activity assay was performed according to the Nakano and Asada (1981) method.

Statistical analysis

All data were analyzed using a factorial randomized complete block design with three replications. Error bars of graphs show the standard error (S.E.) of the mean values. The data were subjected to analysis of variance (ANOVA) followed by Duncan's test at P < 0.05 using with the SPSS statistical software program (SPSS Inc, ver. 23, SPSS Inc., Chicago, IL).

Results

Analysis of growth parameters

Cold stress significantly decreased fresh, dry, and turgid weights. However, TiO2 NPs increased these parameters at both optimum and low temperatures. With increasing TiO2 NPs concentration up to 5 ppm, fresh, dry, and turgid weights increased at both optimum and low temperatures. Significant decreases in fresh, dry and turgid weights were induced by spermine at optimum and both temperatures. Mean comparison of the relative water content showed that cold stress caused significant reduction of RWC compared to control. TiO2 NPs (2 and 5 ppm) and spermine significantly increased RWC at optimum temperature compared to control. A RWC level of 65% was reached with 5 ppm TiO2 NPs under optimum temperature. RWC was significantly increased only at 2 ppm TiO2 NPs under cold stress conditions compared to control (Fig. 1).

Fig. 1.Growth parameters of Glycyrrhiza glabra seedlings exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – fresh weight, b – dry weight, c – turgid weight, d – Relative water content (RWC). Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

Analysis of biochemical characteristics

Results from ICP analysis of Ti NPs-treated seedlings confirmed Ti accumulation in aerial parts, which was increased by increasing nanoparticle concentration. In addition, low temperature increased Ti content compared to optimum temperature at different applied Ti concentrations (Fig. 2a).

Fig. 2.TiO2 and glycyrrhizin contents of Glycyrrhiza glabra seedlings dry weight (DW) exposed to TiO2 nanoparticles (Tio2) and spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – TiO2, b – glycyrrhizin. Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

The mean comparison of glycyrrhizin content showed that cold stress increased glycyrrhizin content compared to control. The highest glycyrrhizin content was observed at 5 ppm TiO2 NPs under cold stress conditions. Spermine caused a significant change in the glycyrrhizin content at optimum temperature, but had no effect at low temperature (Fig. 2b).

The content of photosynthetic pigments was decreased by cold stress. Plants treated with TiO2 NPs showed a significant increase in Chl a, Chl b, total Chl and carotenoid contents at both optimum and low temperatures compared to control plants. The increase of nanoparticle concentration did not cause any significant changes except in total Chl and Chl b contents at optimum temperature, but did however increase significantly the content of all photosynthetic pigments at low temperature. In addition, spermine increased the content of photosynthetic pigments at both optimum and low temperatures, except for Chl b at optimum temperature (Fig. 3).

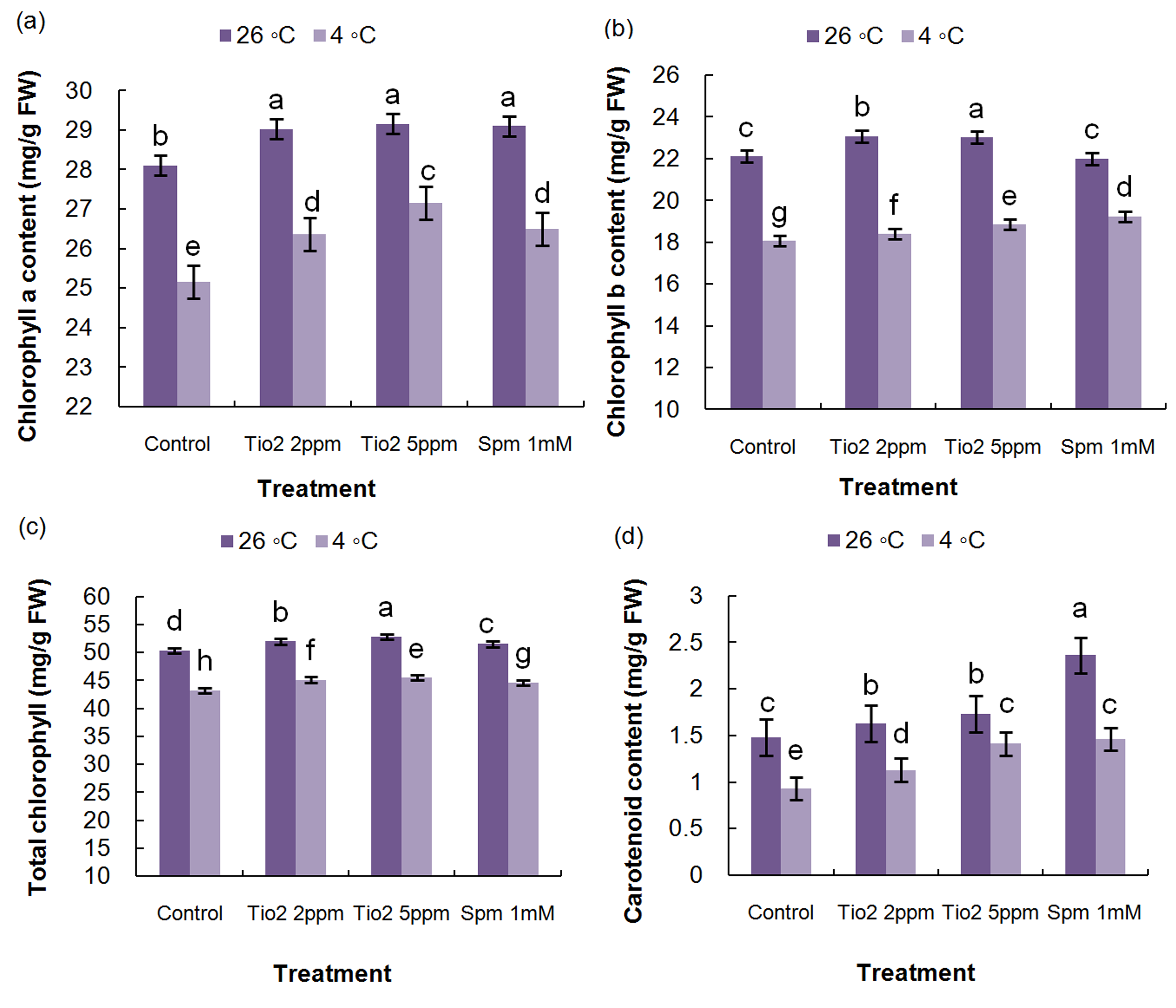

Fig. 3.Photosynthetic pigment content of Glycyrrhiza glabra seedlings fresh weight (FW) exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – chlorophyll a, b – chlorophyll b, c – total chlorophyll, d – carotenoid. Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

The amount of MDA was increased significantly by cold stress. TiO2 NPs (2 and 5 ppm) and spermine caused significant decrease in MDA content at low temperature (Fig. 4a). On the other hand, the amount of MDA increased at 5 ppm TiO2 NPs and optimum temperature. Results also showed that the highest content of hydrogen peroxide was observed at low temperature without any treatments (Fig. 4b). TiO2 NPs caused a significant decrease of hydrogen peroxide content under both temperatures. In addition, spermine reduced the amount of hydrogen peroxide at both temperatures. The lowest amount of hydrogen peroxide was observed in the spermine-treated seedlings at low temperature and in the 5 ppm TiO2 NPs-treated seedlings at optimum temperature.

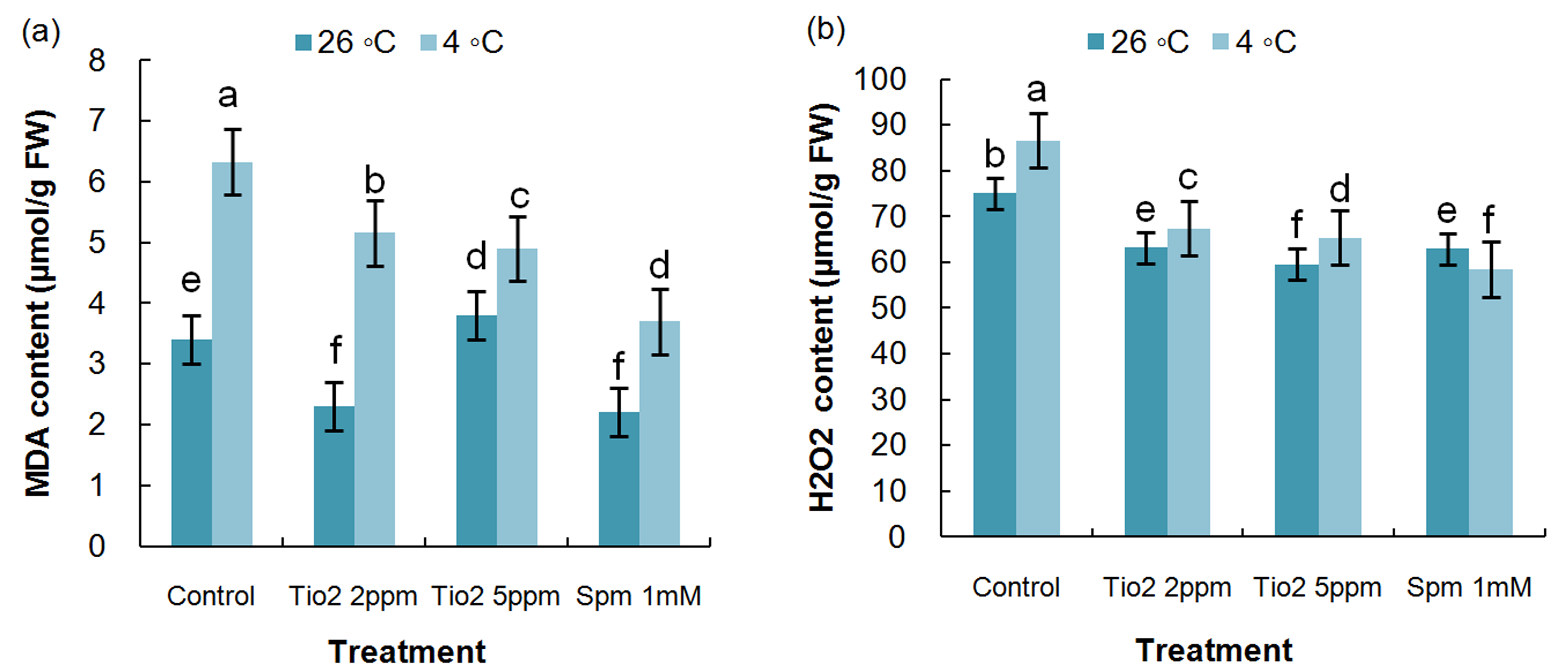

Fig. 4.Oxidative damage in Glycyrrhiza glabra seedlings fresh weight (FW) exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – malondialdehyde (MDA), b – H2O2. Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

The mean comparison of proline content showed that cold stress caused significant increase in proline content as compared to control. In addition, TiO2 NPs increased proline content at both optimum and low temperatures as compared to control. Spermine had no effect on proline content at optimum temperature, but increased it at low temperature (Fig. 5a). In addition, glycine betaine content significantly increased under cold stress conditions. TiO2 NPs and spermine treatments significantly increased glycine betaine content compared to control at both optimum and low temperatures (Fig. 5b).

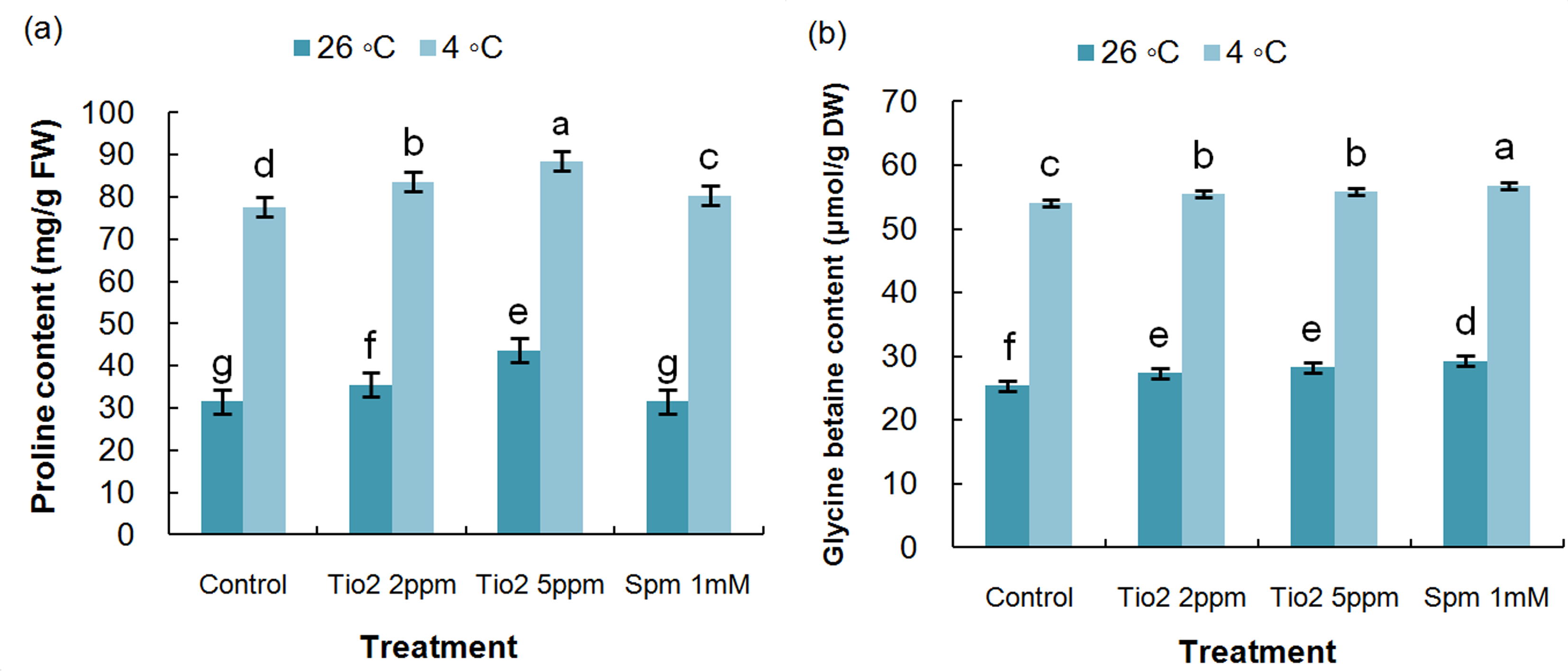

Fig. 5.Osmolyte content of Glycyrrhiza glabra seedlings exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – proline in fresh weight (FW), b – glycine betaine in dry weight (DW). Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

Evaluation of the phenolic compounds showed that cold stress significantly increased the content of total phenol, flavonoid and anthocyanin. TiO2 NPs significantly increased total phenol, flavonoid and anthocyanin contents at both optimum and low temperatures. TiO2 NPs (except for 2 ppm) did not cause any significant change in anthocyanin content under cold stress conditions. The highest amounts of total phenol and flavonoid were achieved with 5 ppm TiO2 NPs application and the lowest contents of total phenol, flavonoid and anthocyanin were observed under normal conditions. In addition, spermine significantly increased total phenol, flavonoid and anthocyanin contents at both optimum and low temperatures (Fig. 6).

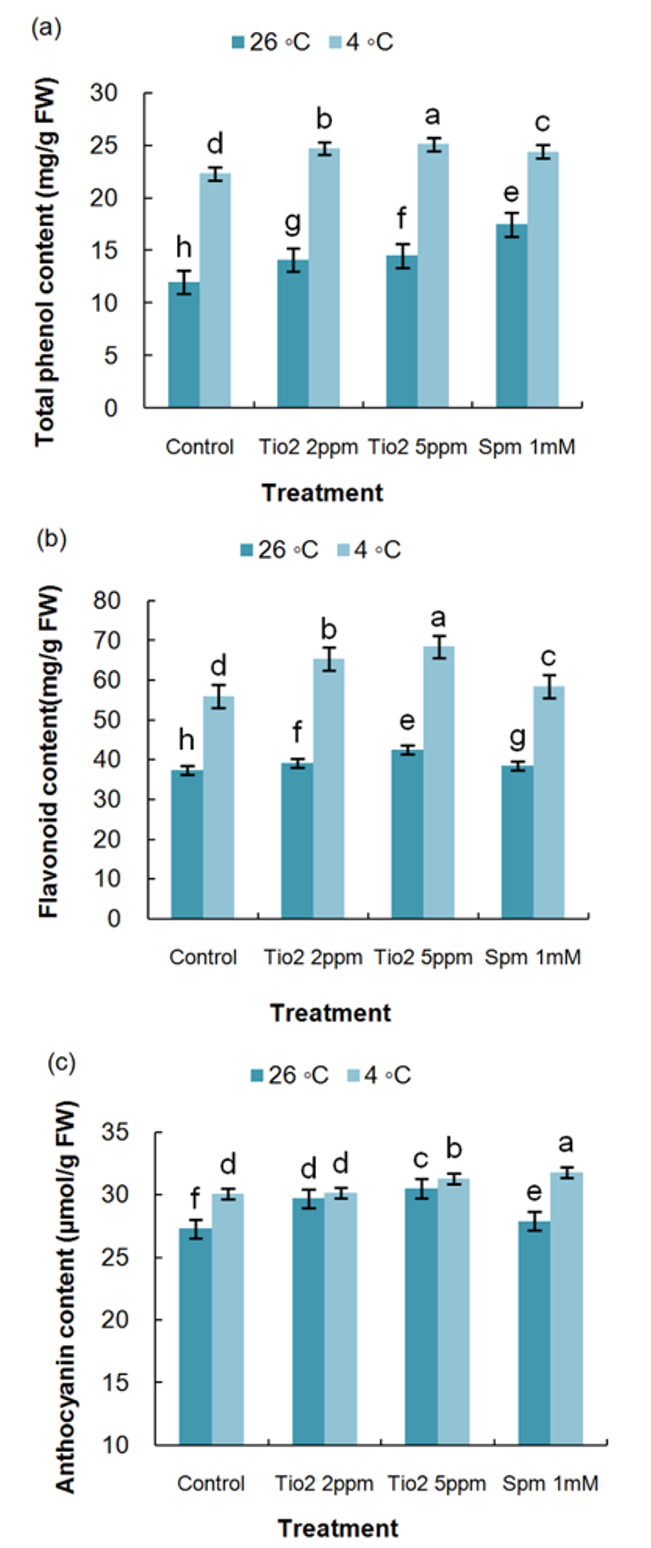

Fig. 6.Phenolic content of Glycyrrhiza glabra seedlings fresh weight (FW) exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – total phenol, b – total flavonoid, c – total anthocyanin. Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

Based on our results cold stress significantly increased glucose, rhamnose and mannose concentrations compared to control. At both temperatures, application of 2 and 5 ppm TiO2 NPs and spermine significantly increased the content of soluble sugars as compared to control (Fig. 7).

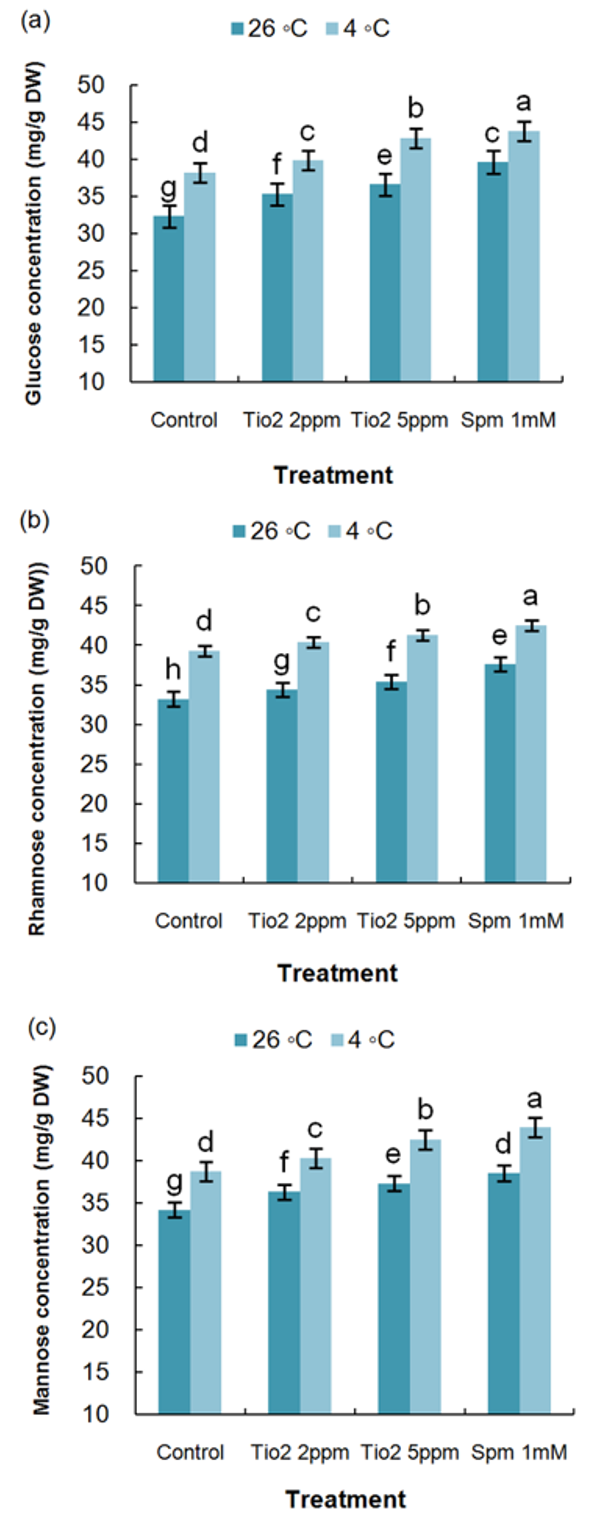

Fig. 7.Soluble sugar content of Glycyrrhiza glabra dry weight (DW) exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine (Spm) under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – glucose, b – rhamnose, c – mannose. Mean ± standard error of 3 replicates is presented. Different letters above the bars indicate significant differences at P < 0.05.

The mean comparison of total protein content showed a significant change in protein content under cold stress conditions (Fig. 8a). At low temperature, total protein content was significantly higher than that at optimum temperature. TiO2 NPs increased the protein content at both optimum and low temperatures. The minimum content of total protein was obtained in control seedlings at optimum temperature. Application of spermine increased the amount of protein at both temperatures compared to control. A significant increase in the activity of antioxidant enzymes was observed under cold stress conditions. In addition, TiO2 NPs application increased the activity of these enzymes at both temperatures. However, except for 2 ppm concentration, TiO2 NPs did not change POD activity. In addition, spermine significantly increased SOD activity at both temperatures (Fig. 8b). Spermine increased PPO activity under cold stress conditions; however, at optimum temperature it did not have a significant effect (Fig. 8c). Spermine significantly reduced POD activity at optimum temperature, but increased it at low temperature (Fig. 8d). Exposure to spermine at optimum temperature significantly reduced APX activity, but at low temperature had no significant effect (Fig. 8e). In the presence of spermine, CAT activity significantly increased at optimum temperature, but not at low temperature (Fig. 8f).

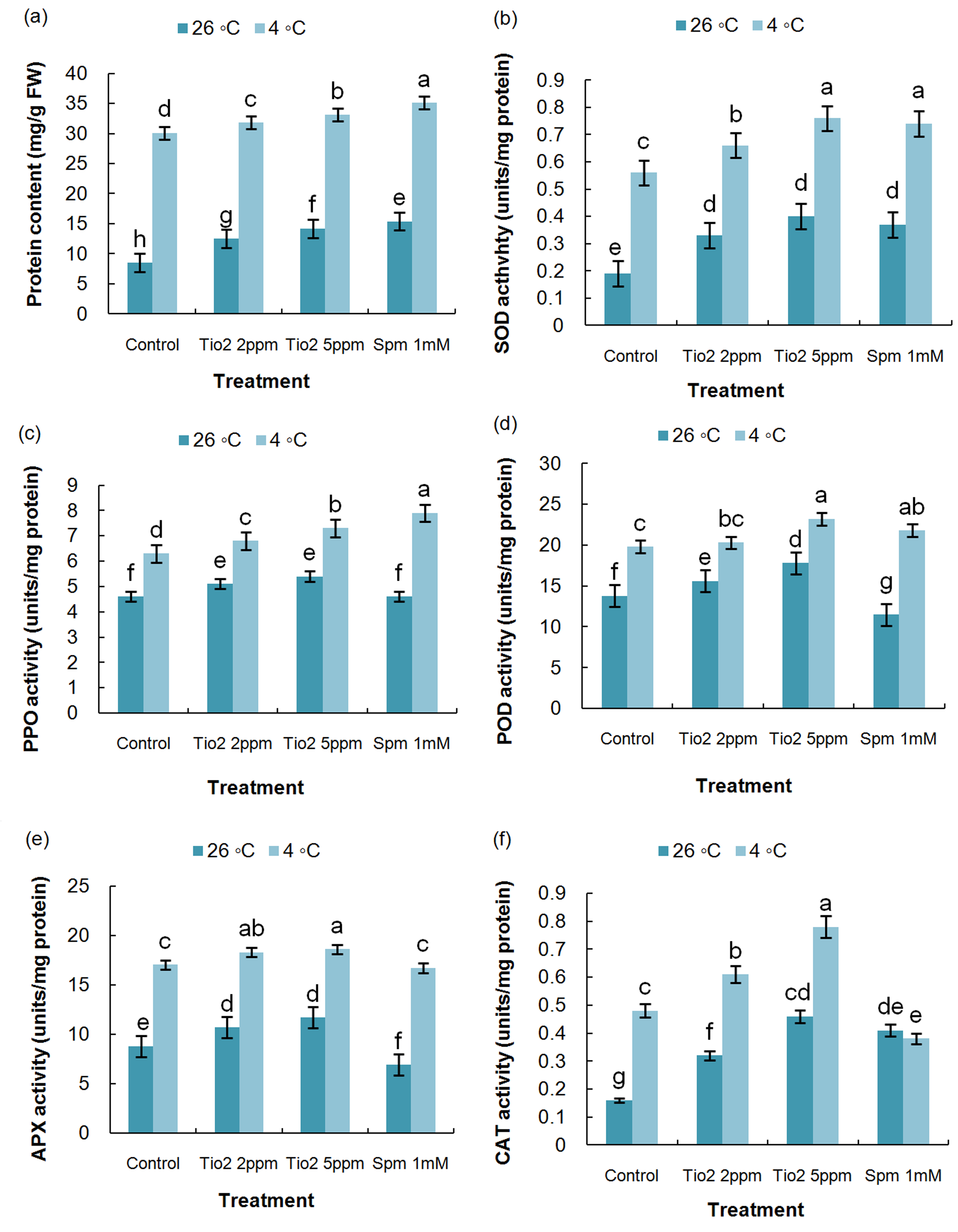

Fig. 8.Total protein content and antioxidant enzyme activity of Glycyrrhiza glabra seedlings exposed to TiO2 nanoparticles (Tio2) and 1 mM spermine under optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions: a – total protein content in fresh weight (FW), b – superoxide dismutase (SOD) activity, c – polyphenol oxidase (PPO) activity, d – peroxidase (POD) activity, e – ascorbate peroxidase (APX) activity, f – catalase (CAT) activity. Different letters above the bars indicate significant differences at P < 0.05.

Discussion

Titanium as a beneficial element stimulates plant growth and increases the absorption of certain elements such as nitrogen, phosphorus, calcium, magnesium, iron, manganese and zinc. The absorption of these elements depends on the moisture content, plant variety or species, soil pH and the status of the nutrients in the soil (Kuzel et al. 2003). It has been reported that titanium dioxide nanoparticles increase the dry weight, chlorophyll biosynthesis, rubisco activity, and photosynthesis rate and nitrogen level in spinach (Zheng et al. 2007). Our results from ICP analysis of Glycyrrhiza glabra seedlings treated with TiO2 NPs confirmed Ti accumulation in aerial parts, which increased with an increase in the concentration applied. The mechanism responsible for nanoparticle entry into the root cells has not been studied sufficiently. However, it may be that nanoparticles penetrate the cell via plasmodesmata. Because of the small size of TiO2 NPs, they might pass through cell wall pores and be distributed in subcellular compartments (Fleischer et al. 1999). Nanoparticles including TiO2 NPs exert their different functions depending on their size and shape, applied concentrations, experiment conditions, plant species and mechanism of uptake (Nekrasova et al. 2011). Our results showed increase of Ti accumulation at low temperature. It is expected that TiO2 NPs uptake can induce physiological responses to cold stress. The higher Ti accumulation at low temperature could be due to the direct or indirect effects of cold stress on plasma membrane and morphoanatomical characters of plants (Kazemi Shahandashti et al. 2014).

Based on our results, cold stress and TiO2 NPs application increased the content of glycyrrhizin in spermine-treated seedlings. Several reports showed that the amount of enzymatic and nonenzymatic antioxidants like glycyrrhizin of licorice plants tended to increase under drought stress (Nasrollahi et al. 2014). Squalene synthase (SQS), ß-amyrin synthase (BAS), cycloartenol synthase (CAS) and lupeol synthase (LUS) enzymes are known to be involved in the synthesis of glycyrrhizin. Hosseini et al. (2018) in a study on licorice under drought conditions found that drought stress increased the expression of glycyrrhizin biosynthetic pathway genes and increased the amount of this substance in roots. In addition, the content of glycyrrhizin increased in response to elicitors such as jasmonates and salicylic acid (Winida et al. 2011). Increasing evidence indicated that glycyrrhizin exerts antioxidant effect and reduces oxidative damage (Kim and Lee 2008).

Growth reduction is one of the clearest plant responses to cold stress. Results from the present study showed that both dry and fresh weights of G. glabra seedlings were significantly reduced by cold stress. The most important response of plants sensitive to cold stress is the reduction of photosynthesis efficiency. This can lead to light damage or diminish PSII activity even at moderate levels of light, which is associated with decrease of carbon metabolism and electron transfer products (Joshi et al. 2007). Our results also showed decrease of photosynthetic pigments and growth parameters under cold stress conditions. TiO2 NPs can improve the structure of chlorophyll, increase light absorption and facilitate the formation of chlorophyll. In agreement with our results, TiO2 NPs increased chlorophyll biosynthesis in bean plants, because of their positive effects on nitrogen uptake (Raliyal et al. 2014). According to our results, spermine increased photosynthetic pigments at low temperature, which is consistent with the results of Cohen et al. (1979) indicating that polyamines prevent chlorophyll degradation under stress conditions.

According to our results, under cold stress conditions the highest amount of H2O2 was generated. Abiotic stresses could stimulate the NADPH oxidase activity in the plasma membrane, and produce H2O2 as a potent ROS (Hao et al. 2006). In TiO2 NPs and spermine-treated seedlings, generation of H2O2 was significantly reduced. Reactive oxygen species are produced in chloroplasts and mitochondria in response to environmental stresses and are toxic to the cells. In the absence of certain protective mechanisms, they can seriously disrupt natural metabolism through oxidative damage to membrane lipids, proteins and nucleic acids (Davey et al. 2005). One of the main products of lipid peroxidation is MDA, which can cause protein damage by reactions with lysine amino groups, cysteine sulfhydryl groups and histidine imidazole substitutes (Refsgaard et al. 2000). MDA has been well recognized as a parameter reflecting damage by cold stress (Davey et al. 2005). Results from the present study showed significantly increased MDA content in conditions of cold stress.The decrease of MDA content in the seedlings treated with the low concentration of TiO2 NPs has been attributed to stabilized composition and improved physical properties of their cell membranes (Mohammadi et al. 2013). TiO2 NPs can also improve the activity of antioxidant enzymes, that may be the other reason behind reduced lipid peroxidation and improved membrane integrity under cold stress (Lei et al. 2008). The increase of MDA formation and lipid peroxidation in seedlings treated with higher concentrations of TiO2 NPs may be due to the genotoxicity and cytotoxicity of these particles (Ghosh et al. 2010). Results from the present study indicated that the effects of TiO2 NPs are concentration-dependent and can be cytotoxic to licorice seedlings at 5 ppm concentration. TiO2 NPs at 5 ppm that increased MDA content at optimum temperature may exceed the special threshold. The role of polyamines in protecting plants against lipid peroxidation is a protective mechanism of the cell to prevent oxidative damage. This group of compounds possesses antioxidant properties, the ability to neutralize acid, cell wall and membrane stability, and prevent degradation under stress conditions (Liu et al. 2007). Results from the present study showed that spermine significantly reduced the amount of MDA under cold stress, which can be attributed to the role of polyamines in ROS elimination.

The most important biochemical reaction of plant cells to environmental stresses including drought, salinity, and cold is the accumulation of organic metabolites like proline, glycine betaine and sucrose. Osmotic regulators such as proline also maintain cellular water, and turgor pressure may contribute to protecting macromolecules, cellular structures, and neutralizing free radicals (Kiara and Roy 1999). There are several studies on proline production in plants and multiplier increase in proline accumulation under stress conditions (Ahmadi and Ardekani 2006). Our results showed that cold stress significantly increased proline content more than twofold compared to control. Proline content was also increased by TiO2 NPs at both optimum and low temperatures. It seems that TiO2 NPs not only improve the activity of antioxidant enzymes, but also induce proline synthesis, which is responsible for maintaining cell turgor under cold stress conditions. TiO2 NPs increased the amount of proline under water-deficit conditions in wheat (Aliabadi et al. 2016) and cotton (Magdy et al. 2016) plants. Our results indicated that spermine had no significant effect at optimum temperature, but significantly increased proline content at low temperature. Application of spermine and putrescine in rice caused proline accumulation in leaves under water deficit conditions and reduced the harmful effects of the stress (Farooq et al. 2009). In addition, accumulation of glycine betaine in higher plants in response to salinity, drought and cold stress has been widely reported (Wani et al. 2013). It has been reported that glycine betaine may be involved in inhibiting ROS accumulation, protecting photosynthetic apparatus, activating some stress-related genes, and protecting the membrane (Chen and Murata 2008). Glycine betaine also reduces the harmful effects of environmental stress by protecting the fourth structure of proteins and thereby maintaining enzyme activity. The results of this study also showed a significant increase of glycine betaine content under cold stress compared to control. In addition, the application of TiO2 NPs and spermine increased the amount of this compound at both temperatures.

Phenolic compounds are derivatives of the phenylpropanoid pathway and are a part of the non-enzymatic and antioxidant defense system of the plant cells. These compounds can act as scavengers of free oxygen radicals or essential antioxidants to protect plants against the progression of the oxidative chain (Ksouri et al. 2007). In this study, the amount of phenolic compounds increased under cold stress conditions. TiO2 NPs and spermine treatments at both optimum and low temperatures increased the amount of these compounds. The increase of phenolic compounds is probably due to their antioxidant roles in response to cold stress as well as ROS neutralization. Anthocyanins are one of the most important antioxidant compounds that not only eliminate free radicals but also prevent their production in plants (Tripathi et al. 2006). Previous studies indicated a strong relationship between cold stress and anthocyanin accumulation in different plants such as grape, maize, blood orange, and apple (Ubi et al. 2006). Our results also showed the increase of antocyanin content under cold stress conditions.

In other hand, plant cells synthesize and accumulate some proteins, sugars and organic acids to protect plants in response to cold stress. Accumulation of soluble proteins can reduce the intracellular free water and prevent the formation of ice crystals in the intrinsic medium and prevents cell damage (Griffith and Yaish 2004). Titanium nanoparticles increase photosynthesis with increased light gain and carbohydrate production. Application of 0.01% TiO2 NPs was able to increase the soluble sugar content in green bean plants (Abdel Latef et al. 2017). Polyamines play an important role in the synthesis of carbohydrates and act as plant growth regulators in some biological processes associated with carbohydrate biosynthesis. The results of this study indicated increased amounts of soluble sugars and protein under cold stress conditions. In addition, spermine and TiO2 NPs treatments increased the content of these compounds at both optimum and low temperatures.

The concentration of H2O2 as a potent ROS increased under cold stress conditions. In the presence of spermine and TiO2 NPs, the reduction of H2O2 may be due to increasing proline content, which has antioxidant feature, and to an elevated antioxidative defense system that could also minimize ROS generation. The ROS levels under stress conditions are controlled by the activity of antioxidant enzymes including peroxidase, catalase and superoxide dismutase and by small molecules present in different cellular compartments. The activity of these enzymes increases in response to biotic and abiotic stresses. It was found that the activity of SOD, APX, and CAT enzymes in tea leaves increased under cold stress conditions (Sariri et al. 2016). According to our results, increasing the activity of antioxidant enzymes play an important role in protecting licorice seedlings against cold stress by eliminating ROS. Exposure to metal oxide nanoparticles causes ROS production, thereby causing oxidative stress and activating plant reactions for detoxification like enzymes activation. The activity of the enzymes may change depending on the type of nanoparticles, concentration, and the time exposure (Movafeghil et al. 2018). Our results showed that TiO2 NPs at both applied concentrations increased the activity of antioxidant enzymes. Increased SOD, CAT and POD activities in response to TiO2 NPs application and consequently reduced H2O2 and MDA have been reported the in several studies (Song et al. 2013). By the application of spermine in our experiment, the activity of the antioxidant enzymes was enhanced under cold stress conditions, which is agreement with findings observed in other plants .

Conclusions

Results showed that a 2-day cold treatment reduced growth, but increased oxidative stress and activated antioxidative and osmoprotective responses of licorice seedlings. Cold treatment also increased the content of glycyrrhizin in the seedlings. When supplemented into the cultivation medium, TiO2 NPs enhanced the ability of seedlings to tolerate cold stress by decreasing MDA and H2O2 contents, and increased antioxidative and osmoprotective responses. TiO2 NPs also enhanced the accumulation of glycyrrhizin in control and cold-treated seedlings. The addition of spermine in the cultivation media also reduced MDA and H2O2 contents in licorice seedlings, probably by increasing the activity of antioxidant enzymes, but had a negative effect on the growth of control and cold-treated seedlings. In comparison to TiO2 NPs, spermine had a less pronounced effect on glycyrrhizin content of licorice seedlings. However, further research is needed for accurate evaluation of cold stress and TiO2 NPs effects on glycyrrhizin content of the G. glabra roots. The results obtained from present study may contribute to a better understanding of the effect of cold stress on licorice plants, and could help the development of a strategy for overproduction of glycyrrhizin for use in food and pharmaceutical industries.

References

  2. Ahmadi SH, Ardekani NJ. The effect of water salinity on growth and physiological stages of eight Canola (Brassica napus) cultivars.. Irrig Sci. 2006; 25:11-20. DOI
  3. Akbari GA, Morteza E, Moaveni P, Alahdadi I, Bihamta MR, Hasanloo T. Pigments apparatus and anthocyanins reactions of borage to irrigation, methyl alcohol and titanium dioxide.. Int J Biosci. 2014; 4:192-208.
  4. Aliabadi T, Safipour Afshar A, Saeid Nematpour A. The effects of nano TiO2 and nano aluminium on the growth and some physiological parameters of wheat (Triticum aestivum).. Indian J Plant Physiol. 2016; 6(2):1627-35.
  5. Bates L, Waldren R, Teare I. Rapid determination of free proline for water stress studies.. Plant Soil. 1973; 39:205-7. DOI
  6. Bradford MM. Rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding.. Anal Biochem. 1976; 72:248-54. DOI | PubMed
  7. Chance B, Maehly AC. Assay of catalases and peroxidases.. Methods Enzymol. 1955; 11:764-755. DOI
  8. Chang CC, Yang MH, Wen HM, Chern JC. Estimation of total flavonoid content in propolis by two complementary colorimetric methods.. Yao Wu Shi Pin Fen Xi. 2002; 10(3):178-82.
  9. Chen TH, Murata N. Glycine betaine: an effective protectant against abiotic stress in plants.. Trends Plant Sci. 2008; 13:499-505. DOI | PubMed
  10. Clément L, Hurel C, Marmier N. Toxicity of TiO2 nanoparticles to cladocerans, algae, rotifers and plants - Effects of size and crystalline structure.. Chemosphere. 2013; 90(3):1083-90. DOI | PubMed
  11. Cohen AS, Popovic RB, Zalik S. Effects of polyamines on chlorophyll and protein content, photochemical activity, and chloroplast ultra structure of barley leaf discs during senescence.. Plant Physiol. 1979; 64:717-20. DOI | PubMed
  12. Davey MW, Stals E, Panis B, Keulemans J, Swennen RI. High throughput of malondialdehyde in plant.. Anal Biochem. 2005; 347:201-7. DOI | PubMed
  13. Farooq M, Wahid A, Lee DJ. Exogenously applied polyamines increase drought tolerance of rice by improving leaf water status, photosynthesis and membrane properties.. Acta Physiol Plant. 2009; 31:937-45. DOI
  14. Fleischer A, O’Neill MA, Ehwald R. The pore size of nongraminaceous plant cell wall is rapidly decreased by borate ester cross-linking of the pectic polysaccharide rhamnogalacturon II.. Plant Physiol. 1999; 121:829-38. DOI | PubMed
  15. Ghosh M, Bandyopadhyay M, Mukherjee A. Genotoxicity of titanium dioxide (TiO2) nanoparticles at two trophic levels: Plant and human lymphocytes.. Chemosphere. 2010; 81:1253-62. DOI | PubMed
  16. Griffith M, Yaish MW. Antifreeze proteins in overwintering plants: a tale of two activities.. Trends Plant Sci. 2004; 9(8):399-405. DOI | PubMed
  17. Grieve CM, Grattan SR. Rapid assay for determination of water soluble quaternary ammonium compounds.. Plant Soil. 1983; 70:303-7. DOI
  18. Harindra Champa WA, Gilla MIS, Mahajanb BVC, Bedic S. Exogenous treatment of spermine to maintain quality and extend postharvest life of table grapes (Vitis vinifera L.) cv. Flame Seedless under low temperature storage.. Lebensm Wiss Technol. 2015; 60:412-9. DOI
  19. Hao F, Wang K, Chen J. Involvement of plasma membrane NADPH oxidase in nikel-induced oxdative stress in roots of wheat seedlings.. Plant Sci. 2006; 170:151-8. DOI
  20. Heath RL, Packer L. Photoperoxidation in isolated chloroplasts: I. Kinetics and stoichiometry of fatty acid peroxidation.. Arch Biochem Biophys. 1968; 125(1):189-98. DOI | PubMed
  21. Hosseini MS, Samsampour D, Ebrahimi M, Abadíac J, Khanahmadi M. Effect of drought stress on growth parameters, osmolyte contents, antioxidant enzymes and glycyrrhizin synthesis in licorice (Glycyrrhiza glabra L.) grown in the field.. Phytochemistry. 2018; 156:124-34. DOI | PubMed
  22. Wani SH, Brajendra Singh N, Haribhushan A, Iqbal Mir J. Compatible solute engineering in plants for abiotic stress tolerance-role of glycine betaine.. Curr Genomics. 2013; 14:157-65. DOI | PubMed
  23. Irigoyen JJ, Emerich DW, Sanchez-Dias M. Water stress induced changes in concentrations of proline and total soluble sugars in nodulated alfalfa (Medicago sativa) plants.. Plant Physiol. 1992; 8:55-60. DOI
  24. Joshi SC, Chandra S, Palni LMS. Differences in photosynthetic characteristics and accumulation of osmoprotectants in saplings of evergreen plants grown inside and outside a glasshouse during the winter season.. Photosynthetica. 2007; 45(4):594-600. DOI
  25. Kabiri R, Farahbakhsh H, Nasibi F. Salicylic acid ameliorates the effects of oxidative stress induced by water deficit in hydroponic culture of Nigella sativa.. J Stress Physiol Biochem. 2012; 8(3):13-22.
  26. Kar M, Mishra D. Catalase, Peroxidase, and polyphenoloxidase activities during rice leaf senescence.. Plant Physiol. 1976; 57:315-9. DOI | PubMed
  27. Kazemi-Shahandashti SS, Maali-Amiri R, Zeinali H, Khazaei M, Talei A, Ramezanpour SS. Effect of short-term cold stress on oxidative damage and transcript accumulation of defense-related genes in chickpea seedlings.. J Plant Physiol. 2014; 171(13):1106-16. DOI | PubMed
  28. Kiara DV, Roy DN. Oxidative stress and antioxidative defense with an emphasis on plants antioxidants.. Environ Rev. 1999; 7:31-51. DOI
  29. Kim YJ, Lee CS. Glycyrrhizin attenuates MPTP neurotoxicity in mouse and MPP-induced cell death in PC12 cells.. Korean J Physiol Pharmacol. 2008; 12:65-71. DOI | PubMed
  30. Ksouri R, Megdiche W, Debez A, Falleh M, Grignon C, Abdelly C. Salinity effect on polyphenol content and antioxidant activities in leaves of the halophyte Cakile maritima.. Plant Physiol Biochem. 2007; 45:244-9. DOI | PubMed
  31. Kuzel S, Hruby M, Cigler P, Tlustos P, Van N. Mechanism of physiological effects of titanium leaf sprays on plants grown on soil.. Biol Trace Elem Res. 2003; 91:179-90. DOI | PubMed
  32. Lei Z, Su MY, Wu X, Liu C, Qu CX, Chen L. Antioxidant stress is promoted by nano-anatase in spinach chloroplasts under UV-Beta radiation.. Biol Trace Elem Res. 2008; 121:69-79. DOI | PubMed
  33. Lichtenthaler HK, Wellburn AR. Determinations of total carotenoids and chlorophylls a and b of leaf extracts in different solvents.. Biochem Soc Trans. 1983; 11(5):591-2. DOI
  34. Liu JH, Kitashiba H, Wang J, Ban Y, Moriguchi T. Polyamines and their ability to provide environmental stress tolerance to plants.. Plant Biotechnol. 2007; 24:117-26.
  35. Magdy AS, Hazem MM, Alia AM, Alshaimaa AI. Biochemical and physiological effects of TiO2 and SiO2 nanoparticles on cotton plant under drought stress.. Res J Pharm Biol Chem Sci. 2016; 7(4):1540-51.
  36. Mohammadi R, Maali-Amiri R, Abbasi A. Effect of TiO2 nanoparticles on chickpea response to cold stress. Biological Trace Element Research 152, 403–410.Mostofa, M.G., Yoshida, N., Fujita, M., 2014: Spermidine pretreatment enhances heat tolerance in rice seedlings through modulating antioxidative and glyoxalase systems.. Plant Growth Regul. 2013; 73:31-44.
  37. Movafeghi A, Khataee A, Abedi M, Tarrahi R, Dadpour M, Vafaei F. Effects of TiO2 nanoparticles on the aquatic plant Spirodela polyrhiza: Evaluation of growth parameters, pigment contents and antioxidant enzyme activities.. J Environ Sci (China). 2018; 64:130-8. DOI | PubMed
  38. Nair R, Varghese SH, Nair BG, Maekawa T, Yoshida Y, Kumar DS. Nanoparticulate material delivery to plants.. Plant Sci. 2010; 179:154-63. DOI
  39. Nakano Y, Asada K. Hydrogen peroxide is scavenged by ascorbate-specific peroxidase in spinach chloroplasts.. Plant Cell Physiol. 1981; 22:867-80.
  40. Nasrollahi V, Mirzaie-Asl A, Piri K, Nazeri S, Mehrabi R. The effect of drought stress on the expression of key genes involved in the biosynthesis of triterpenoid saponins in licorice (Glycyrrhiza glabra).. Phytochemistry. 2014; 103:32-7. DOI | PubMed
  41. Navakoudis E, Vrentzou K, Kotzabasis K. A polyamine and LHCII protease activity based mechanism regulate the plasticity and adaptation status to the photosynthetic apparatus.. Biochim Biophys Acta. 2007; 1767:261-71. DOI | PubMed
  42. Nekrasova GF, Ushakova OS, Emakov AE, Uimin MA, Byzov IV. Effect of copper (II) ions and copper oxide nanoparticles on Elodea densa Planch.. Russ J Ecol. 2011; 42:458. DOI
  43. Orujei Y, Shabani L, Sharifi-Tehrani M. Induction of glycyrrhizin and total phenolic compound production in licorice by using arbuscular mycorrhizal fungi.. Russ J Plant Physiol. 2013; 60(6):855-60. DOI
  44. Plessi A, Bertelli D, Albasini A. Distribution of metals and phenolic compounds as a criterion to evaluate variety of berries and related jams.. Food Chem. 2007; 100(1):419-27. DOI
  45. Raliya R, Biswas P, Tarafdar JC. TiO2 nanoparticle biosynthesis and its physiological effect on mung bean (Vigna radiata L.).. Biotechnol Rep (Amst). 2014; 5:22-6. DOI | PubMed
  46. Refsgaard HH, Tsai L, Stadtman ER. Modification of proteins by polyunsaturated fatty acid peroxidation products.. Proc Natl Acad Sci USA. 2000; 97:611-6. DOI | PubMed
  47. Sariri R, Raeofi Masooleh A, Bakhshi Khaniki GR. The effect of cold temperature on oxidative damage and activity of oxidative enzymes in tea leaves from northern Iran.. Nova Biologica Reperta. 2016; 2:298-311. DOI
  48. Song U, Jun H, Waldman B, Roh J, Kim Y, Yi J. Functional analyses of nanoparticle toxicity: a comparative study of the effects of TiO2 and Ag on tomatoes (Lycopersicon esculentum).. Ecotoxicol Environ Saf. 2013; 93:60-7. DOI | PubMed
  49. Stampoulis D, Sinha SK, White JC. Assay-dependent phytotoxicity of nanoparticles to plants.. Environ Sci Technol. 2009; 43:9473-9. DOI | PubMed
  50. Tripathi BN, Mehta SK, Amar A, Gaur JP. Oxidative stress in Scenedemus sp. during short and long-term exposure to Cu and Zn.. Chemosphere. 2006; 62:538-44. DOI | PubMed
  51. Ubi BE, Honda C, Bessho H, Kondo S, Wada M, Kobayashi S. Expression analysis of anthocyanin biosynthetic genes in apple skin: effect of UV-B and temperature.. Plant Sci. 2006; 170:571-8. DOI
  52. Velikova V, Yordanov I, Edreva A. Oxidative stress and some antioxidant systems in acid rain-treated bean plants: Protective role of exogenous polyamines.. Plant Sci. 2000; 151:59-66. DOI
  53. Winida W, Hiroyuki T, Yukihiro S, Waraporn P. Methyl jasmonate elicitation enhances glycyrrhizin production in Glycyrrhiza infata hairy roots cultures.. J Biosci. 2011; 66:423-8.
  54. Winterbourn CC, McGrath BM, Carrell RW. Reactions involving superoxide and normal and unstable hemoglobins.. Biochem J. 1976; 155:493-502. DOI | PubMed
  55. Wu HP, Cheng TL, Tseng WL. Phosphate-modified TiO2 nanoparticles for selective detection of dopamine, levodopa, adrenaline, and catechol based on fluorescence quenching.. Langmuir. 2007; 23:7880-5. DOI | PubMed
  56. Yin X, Gong X, Zhang L, Jiang R, Kuang G, Wang B. Glycyrrhetinic acid attenuates lipopolysaccharide-induced fulminan hepatic failure in d-galactosamine-sensitized mice by up-regulating expression of interleukin-1 receptor-associated kinase-M.. Toxicol Appl Pharmacol. 2017; 320:8-16. DOI | PubMed
  57. Yordanov I, Velikova V, Tsonev T. Plant responses to drought and stress tolerance.. Bulg J Plant Physiol. 2003; •••:187-206.
  58. Zheng L, Su M, Liu CH, Chen L, Huang H, Wu X. Effects of nanoanatase TiO2 on photosynthesis of spinach chloroplasts under different light illumination.. Biol Trace Elem Res. 2007; 119:68-76. DOI | PubMed

Main Article Content

Abstract

Licorice (Glycyrrhiza glabra L.) is known as an important medicinal plant throughout the world. Glycyrrhizin is one of the most important specialized metabolites produced by licorice. In order to study the effect of TiO2 nanoparticles (TiO2 NPs) and spermine on physiological and biochemical traits of licorice under cold stress conditions, a factorial experiment was conducted in a completely randomized design with three replications. Plants were exposed to optimum temperature (26 ºC) as control and low temperature (4 ºC) as cold stress conditions and also treated with TiO2 NPs (2 and 5 ppm) and spermine (1 mM), separately. Results from physiological and biochemical analyses of the aerial parts of licorice seedlings showed that the growth parameters and the content of photosynthetic pigments decreased in response to low temperature. TiO2 NPs and spermine treatments increased plant resistance to cold stress and decreased the level of oxidative damage by reduction of alondialdehyde (MDA) and hydrogen peroxide (H2O2) contents. In other hand, TiO2 NPs and spermine caused increase of phenolics, total protein and osmolytes contents under cold stress conditions. An increase in glycyrrhizin content was significantly induced by low temperature, TiO2 NPs and spermine.

Keywords

cold stress Glycyrrhiza glabra glycyrrhizin spermine TiO2 nanoparticles
